Crushers

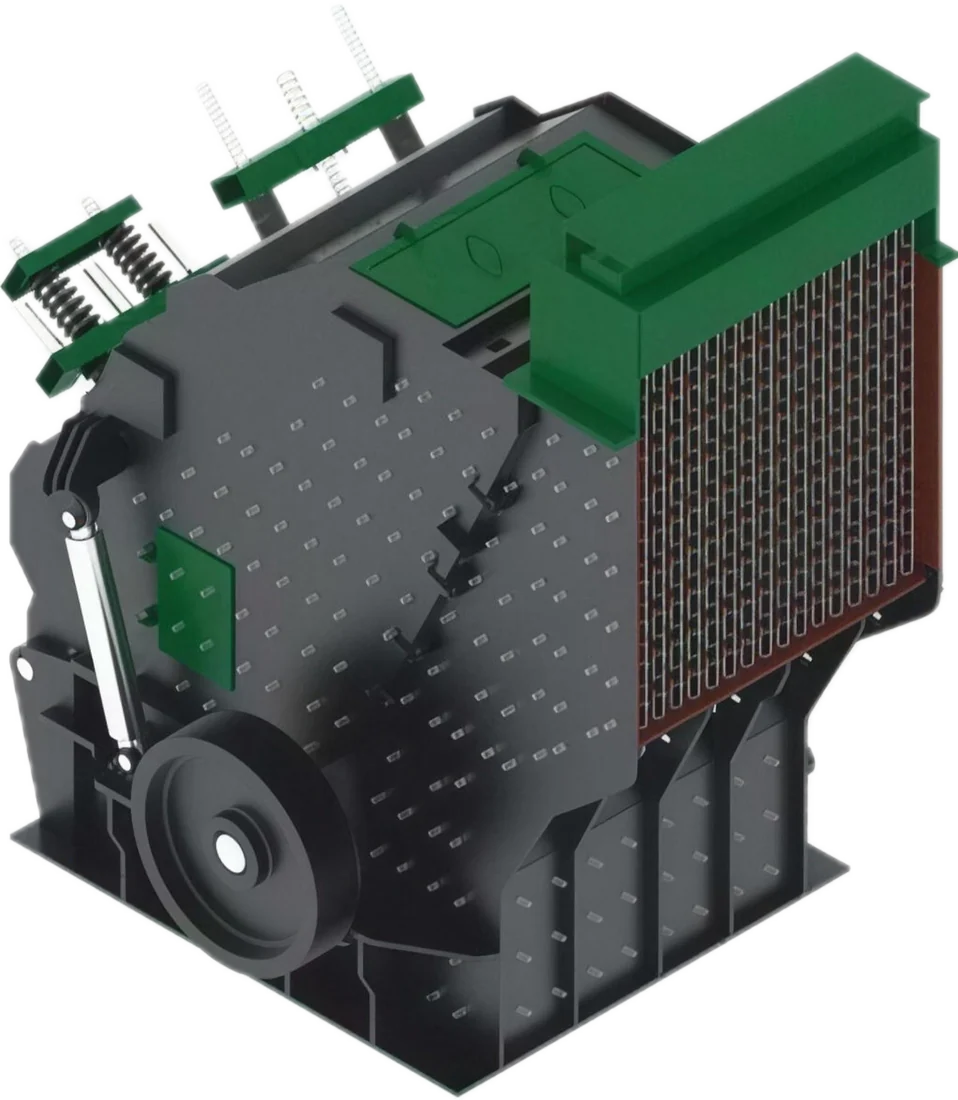

Primary Impact Crusher
High-capacity primary impact crusher for medium-hard materials (IC series).
IC 700 · +5 models
- Rotor Diameter
- 1000mm
- Rotor Width
- 700mm
- Max Feed Size
- 500mm
- Capacity
- 50-120t/h
Overview
The Elkamak Primary Impact Crusher breaks large material in the first stage. A high-speed rotor and hammers shatter the material while it impacts the inner surface — ideal for medium/low-hardness, non-abrasive materials. Hydraulic final-product sizing.
Models & Specifications
| Model | Rotor Diameter(mm) | Rotor Width(mm) | Max Feed Size(mm) | Capacity(t/h) | Motor Power(kW) | Weight(kg) |
|---|---|---|---|---|---|---|
| IC 700 | 1000 | 700 | 500 | 50-120 | 90-132 | 9.250 |
| IC 1000 | 1200 | 1000 | 600 | 140-200 | 160-200 | 14.500 |
| IC 1250 | 1400 | 1250 | 600 | 280-460 | 250 | 18.600 |
| IC 1500 | 1400 | 1500 | 800 | 380-600 | 315 | 27.000 |
| IC 1800 | 1600 | 1800 | 1000 | 420-750 | 2x220 | 33.000 |
| IC 2000 | 1600 | 2000 | 1200 | 580-960 | 2x250 | 42.500 |
