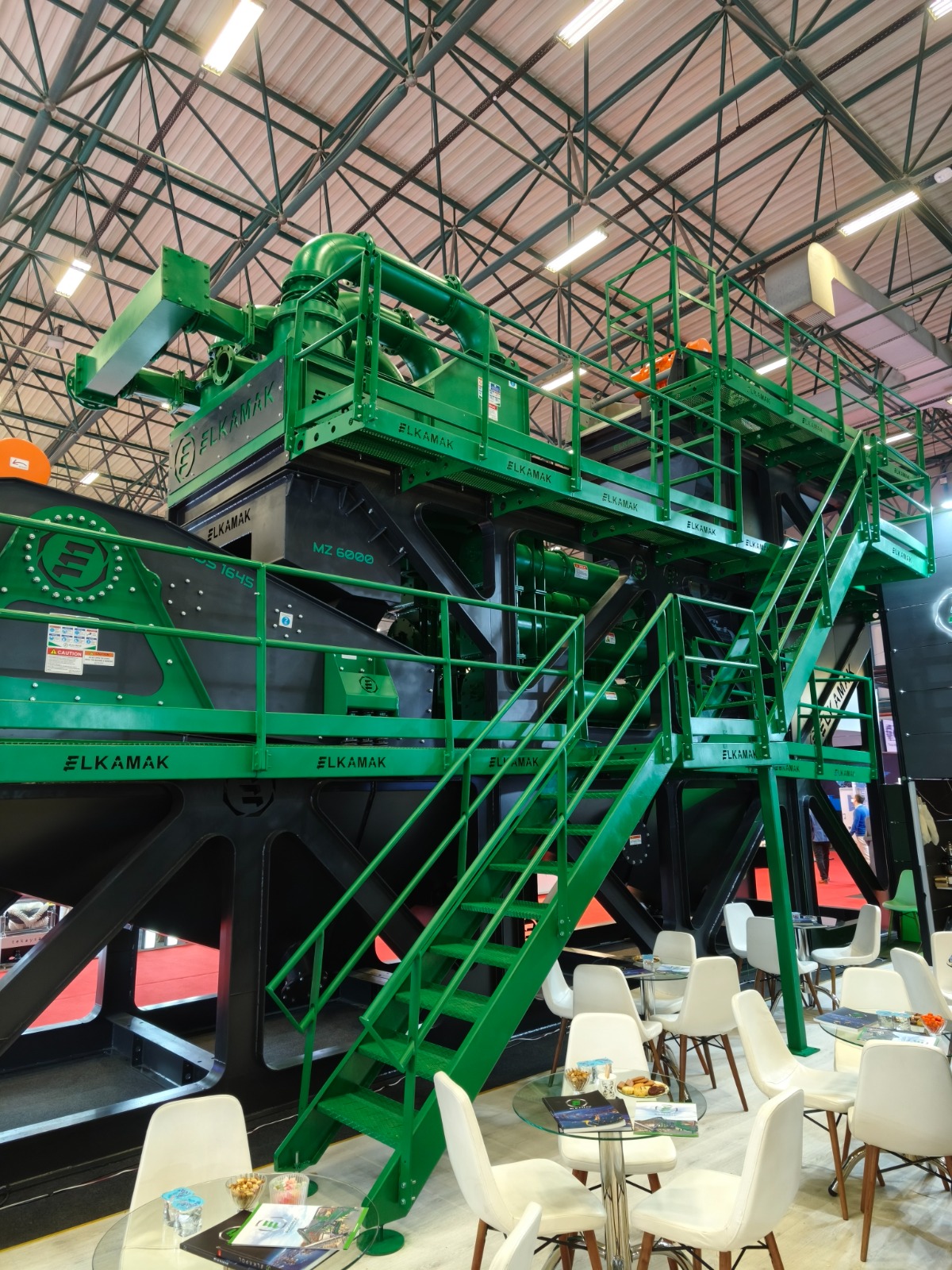

MONOCLEAN High-Efficiency Clay Separation and Washing System

In sectors such as aggregates, concrete, and the glass industry, the most critical factor determining final product quality is the cleanliness of the raw material. Especially in the production of natural sand, crushed sand, and silica sand, the sticky clay, silt, and ultra-fine contaminants remaining on the material not only reduce the efficiency of subsequent processes but also directly affect its market value.

The MONOCLEAN High-Efficiency Clay Separation and Washing System goes far beyond a standard washing machine for industrial facilities, offering an integrated process solution that combines mechanical friction, controlled turbulence, and hydrocyclone classification within a single body.

MONOCLEAN Operating Principle

The system operates on a three-stage working principle to break down the most stubborn clay lumps and flawlessly clean the aggregate surfaces:

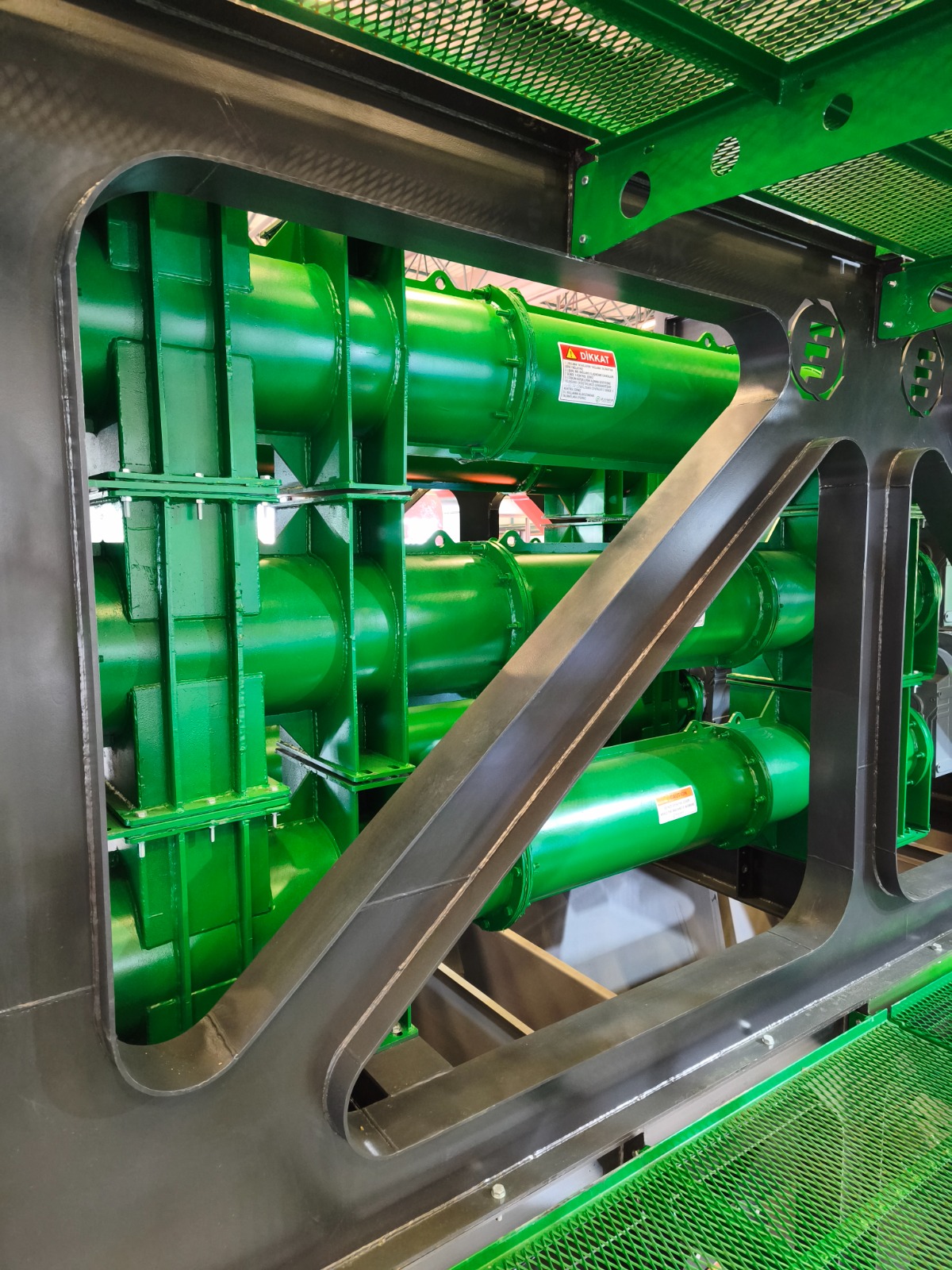

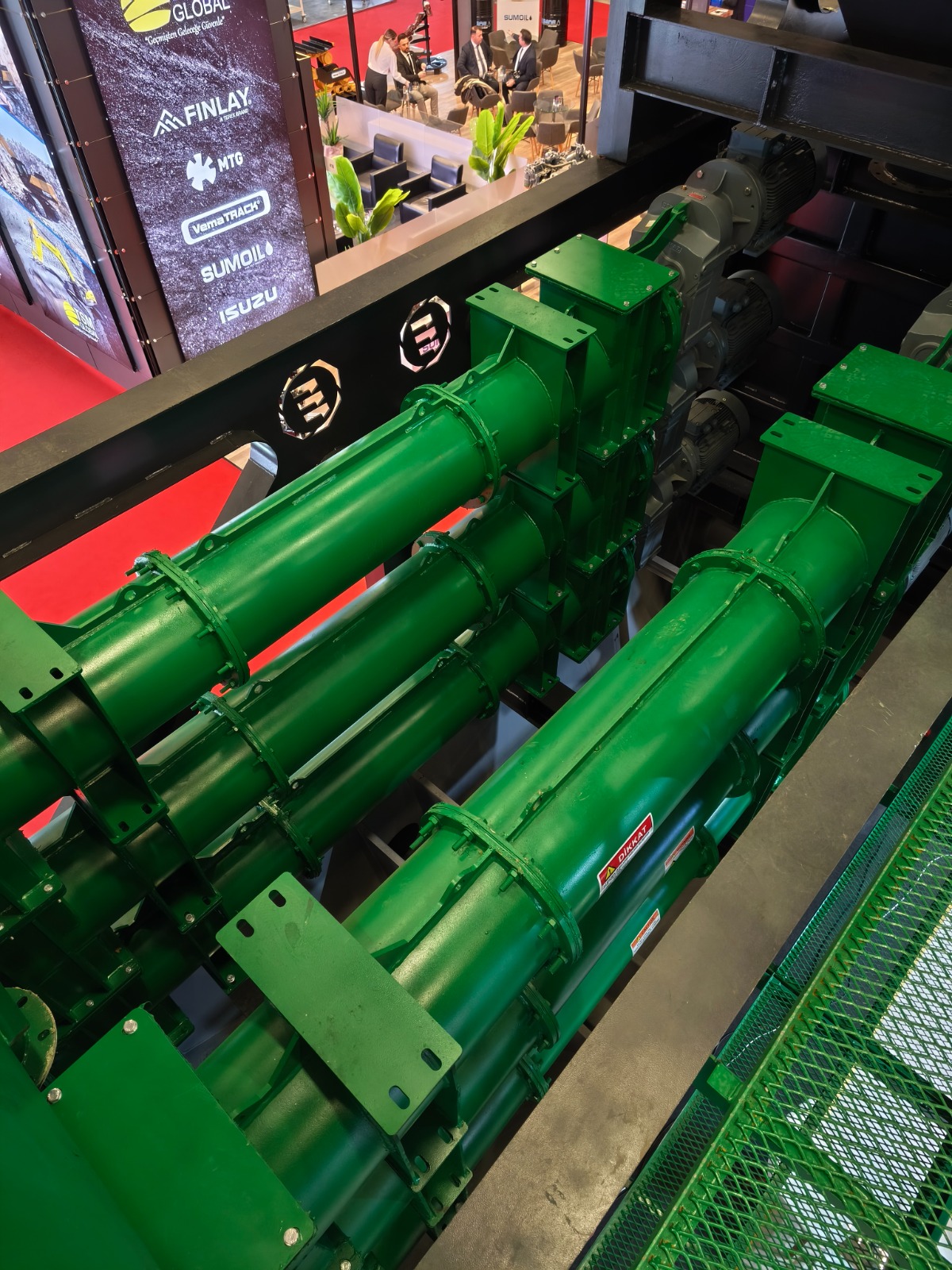

1. Mechanical Interaction: The material is fed into the specially designed MONOCLEAN reactor in a controlled manner. Thanks to the intense mechanical friction and controlled turbulence created here, even the most stubborn clay lumps are completely broken down and removed from the aggregate surfaces.
2. Precise Classification with Hydrocyclone: The material discharged from the reactor is directly transmitted to the hydrocyclone system. The released clay and ultra-fine unwanted particles are definitively removed from the system via the hydrocyclone overflow.
3. Dewatering and Direct Stockpiling: The cleaned, high-quality product is taken from the underflow and fed to the dewatering screen. This ensures the material is ready to be sent directly to the stockpile area with an extremely low moisture content.

Main Advantages

Unlike traditional washing methods, MONOCLEAN focuses on maximizing product value while reducing operational costs:

• Reduction in Methylene Blue (MB) Value: It significantly improves the MB value, which is one of the biggest indicators of quality in concrete aggregates.
• Compact and Modular Design: It does not take up much space and can be easily integrated into existing crushing, screening, and washing plants.
• Low Operating Cost: It demonstrates continuous, stable working performance with minimum energy and maintenance requirements.
• Direct Stockpiling Capability: Thanks to the dewatering integration, it eliminates the need for extra drying or resting areas.
• Scalability: The system capacity and process configuration are specially projected according to the mineralogical characteristics of the raw material to be processed.

Application Areas

Showing superior performance in every area where challenging materials with high clay content are processed, the main application areas of the MONOCLEAN system are:

• Natural sand and crushed sand production plants
• Silica sand beneficiation processes
• Concrete and ready-mixed concrete aggregate production
• Glass industry raw materials
• Industrial mineral processing plants
